Date of Manufacture:

Manuals and schematics :


Email our webmaster for manuals

Tube and Semiconductor Complement:

Model Notes

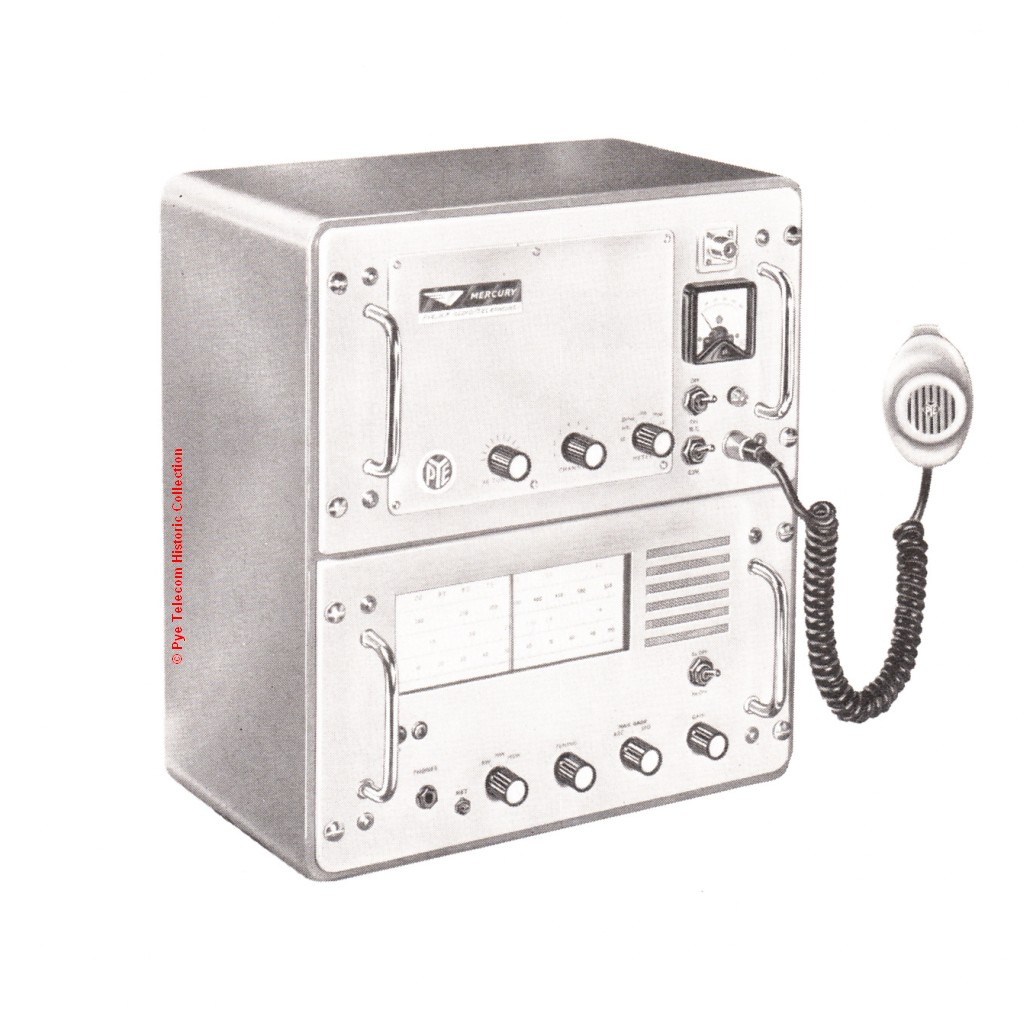

The PTC986 Mercury was an HF transmitter-receiver intended for land fixed and mobile use in the export markets where long range communication was required.  It was a variation of the PM125 Hamble design.

The equipment had a transistorised, tunable receiver and an 8 channel crystal controlled transmitter.  The RF power output was 20 Watts AM or CW into 50 Ohms.  The internal power supply was also transistorised.

The frequencies covered were 535 - 1605 KHz, 1.6 - 3.8 MHz and 3.8 - 10.0 MHz.

12 Volt and 24 Volt DC powered versions were available.
